Assomac Machines Limited

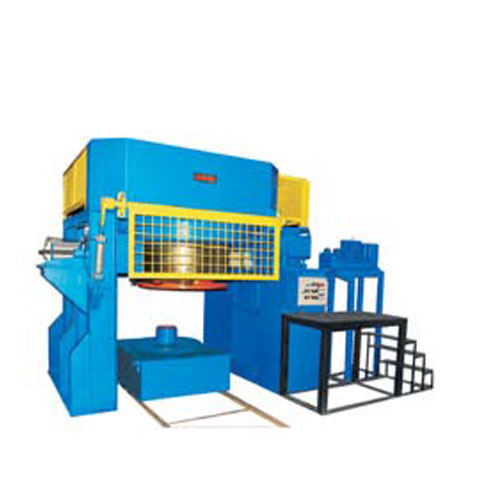

Inverted Vertical Drawing Machine (IVD)

The use of inverted drawing machines is increasing day by day for drawing cold heading quality wire from High Carbon Wires, Stainless Steel Wires 8, various kinds of Alloy Wires of thick sizes and with bigger coil weights. The machine can increase the efficiency to a large extent as the drawing is done from coil to coil and the drawn wires are directly wound on carriers which are taken as is for further in-plant use or large coil dispatches.

In case of wires size over 16 mm productivity can also be increased with an inline cutter pointing machine and horizontal arm type revolving payoff with a push feeding system.

Inverted Vertical Drawing Machine (IVD)
Block Diameter (mm) 1400 1200 1000 900 800 700 600
Wire Size Range (mm) 40 - 16 36 - 14 32 - 8 25 - 6 20 - 4 14 - 3 7 - 2
Motor KW Range 200 - 125 160 - 90 125 - 55 75 - 45 55 - 30 45 - 22 30 - 15
Speed Range (mtrs./min.) 10 - 30 10 - 40 15 - 55 20 - 75 30 - 100 45 - 120 60 - 150
Max. Coil Weight (kgs.) 2500 2500 2500 2000 2000 1500 1000
