Wire Flattening Mill

We offer complete range of Wire Flattening Mills for both Ferrous and Non-Ferrous Wires. Though most features of our mills are standard, we can produce entire line as per the exact production requirements of the customers. Besides this, we also offer the complete line of accessories that are used with Wire Flattening Mills.

Features:

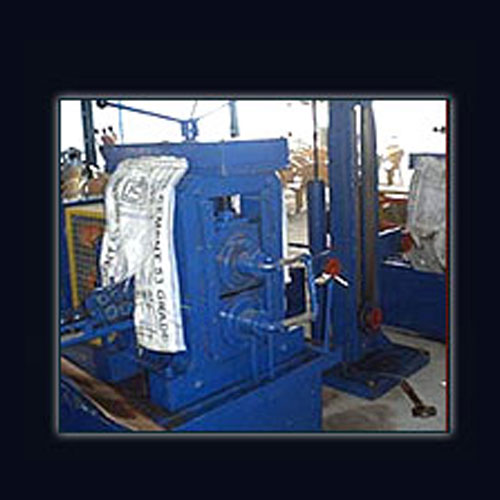

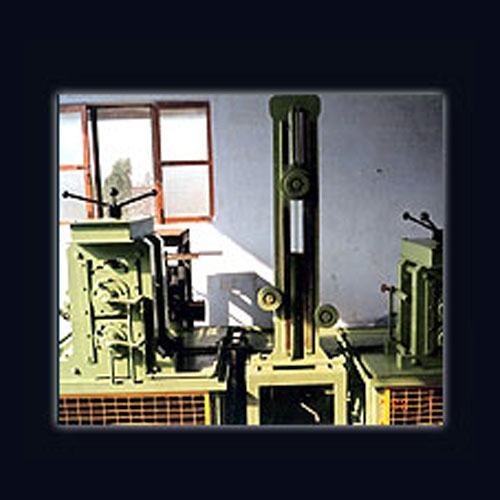

Wire Flattening Mill Wire Flattening Mill

Wire Flattening Mill


Wire Straightening Machines & Cutting Machines

Wire Straightening and Cutting Machines are used to straighten & cut wires to make cut length rods out of coils. This machine is used wherever wire is further processed in form of Rods and where accurate straightening of coiled wire with clean cut, tolerances and high outputs are of importance. They are widely used in Industries concerned with Manufacturers of Locks, Umbrellas, Electrodes, Toys, Fan Cover, Kitchen wares, Auto parts, Rib and Tor Steel Wires, Aluminum, Copper, Brass, S.S Wire & PVC Wire etc.

The wire is drawn from the Coil Pay-off Stand through the Driven pinch rollers having grooves of different diameters & passed through the high speed rotating spinner, which is equipped with five numbers of quickly and easily adjustable dies of different material like carbide, Cast Iron, Cast Nylon etc depending on the material to be straightened. Finally passing through the cutter, actuated by the push rod fitted on the conveyor, the length required can be adjusted as desired on the conveyor gauge. The straightened and cut - to - length wires are collected on the wire collector at the bottom to be removed manually.

Features: Standard Accessories: Optional Accessories:
Wire Straightening Machine Wire Straightening Machine

Wire Straightening Machine

Specifications :

Model No AML-SC-03 AML-SC-05 AML-SC-08 AML-SC-16 AML-SC-ES (Electrode Special) AML-SC-R8 (Ribbed Special) AML-SC-R12 (Ribbed Special)
In Thickness of Wire 1.6 to 3 mm 2.5 to 5mm 4 to 8 mm 8 to 16mm 3 to 5 mm 5 to 8 mm 8 to 12 mm
In length of wire to be cut automatically mm 0.3 to 2.5 mtrs. Upto 6 mtrs. Upto 6 mtrs. Upto 12 mtrs. 350 to 450mm 12 mtrs. 12 mtrs.
Length of wire to be cut without automatically attachment Any Length Any Length Any Length Any Length Any length Any Length Any Length
Capacity per min. 36mtrs/min 60mtrs/min 50mtrs/min 20mtrs/min 50mtrs/min 120mtrs/min 120mtrs/min
Power of Motor Required (H.P/R.P.M) 3 + 1 HP / 1440 7.5 + 1 HP / 1440 10 + 1 HP / 1440 15 + 2 HP / 1440 5 + 1 HP / 1440 10 + 2 HP 15 + 2 HP
Approx Weight 450 kgs. 550 kgs. 650 kgs. 1800 kgs. 500 kgs. 2000 kgs. 2500 kgs.
Floor Space required (In Feet) 3’ x 18’ 3’ x 30’ 3’ x 30’ 7’ x 80’ 4’ x 15’ 8’ x 80’ 8’ x 80’
Pay-Off Stand Revolving Pay-Off for 300 kgs. coil weight Revolving Pay-Off for 300 kgs. coil weight Revolving Pay-Off for 300 kgs. coil weight Turn-Table Pay-Off for 1500 kgs. coil weight Revolving Pay-Off for 300 kgs. coil weight Turn-Table Pay-Off for 1500 kgs. coil weight Turn-Table Pay-Off for 1500 kgs. coil weight
PAY-OFF PRICE Included Included Included Included Included Included Included
Price is for upto 2.5 mtrs. Conveyer length. Additional price per meter Max. upto 2.5 mtrs. included Additional Additional Additional Length fixed for Stick Electrodes Max. upto 12 mtrs. included Max. upto 12 mtrs. included
