Specialized Die Boxes

We offer the complete range of specialized die boxes, which are used for different types of Wire Drawing Machines. Using the best available raw materials, we manufacture die boxes that provide efficient and durable usage. We offer standard as well as custom designed die boxes.

OurRotating Die Boxes are meant for improved performance, die life and wire quality. We offer the complete range of rotating die boxes, which cover a wide range of sizes and applications. Our rotating die boxes are available for both single and pressure dies.

Wire Size Range : 16mm to 0.6mm
Die Case Sizes : 43x28/53x35/70x40

• Even Die Wear
• Even Product Concentricity & Finish
• Lower Drawing Temperatures
• Better Lubrication on Wire
• Increased Drawing Speeds

We offer a range of robust Motorized Soap Applicator Die Box that are used in Wire Drawing Industry for lubricant enhancement and labour reduction. All the die boxes are manufactured from premium quality raw materials that offer outstanding efficiency and durability. We offer die-boxes in customized specifications too.

Wire Size Range :	16mm to 0.6mm
Model :	AMS-1/AMS2/AMS3
Die Case Sizes :	43x28 / 53x35 / 70x40
Benefits of :	Better Lubrication
Soap Applicators :	Very Long Die Life
	Better Product finish
	Lower drawing temperatures
	Increased drawing speeds
	Almost zero lubrication failure

We offer a range of Rotating Die Boxes without Water Cooling for skin pass dies that have improved wire drawing efficiency and die life. Available in several sizes, our range efficiently meets the entire wire drawing requirements. We also offer customized Rotating Die Boxes for skin pass dies.

The Advantages:

• Longer die life
• Absolute concentric wires
• Less wire breaks
• Improved lubrication
• Least maintenance down time
• Faster line speeds
• Less wire scratches

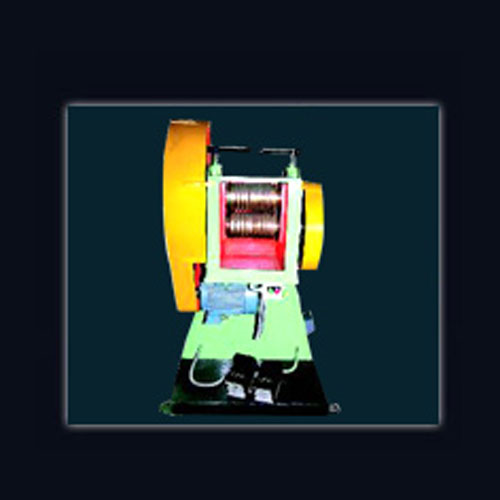

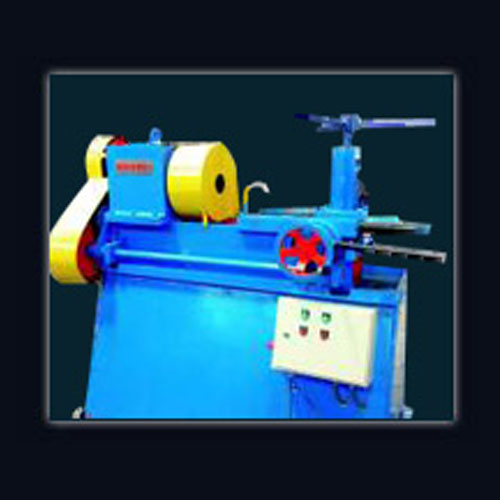

Wire Pointing Machines are suitable for pointing different types of materials like Mild Steel, High Carbon Steel, Aluminium, Copper, etc. The pointing rolls are made of High carbon alloy steel materials hardened tempered and ground finished. Both hand driven as well as power driven. The machine is mounted on 4 wheels, thereby making it mobile and useful to serve several drawing machines. The machine is of a Swiveling Type with 12mm-0.8mm thickness of wires.

The distinguished characteristics of our Butt Welding Machines include accurate welding pressure and a stronger welding strength. high quality of transformer primary and secondary materials provide long and trouble free service life.

Features:

• High speed ensures higher level of performance
• Several steps for different size ranges
• Option to have integrated burr grinder to reduce time cycle.
• Available in various specifications of voltage, circuit currents, wire size etc.

We offer a complete range of Micro Wire Butt Welding Machines that are suitable to weld mild steel, high carbon steel, copper, aluminium wires etc. These welding machines weld wires in a range of 0.3 - 2.5 mm. We design Micro Wire Butt Welding Machines in Portable Models, Trolley Stand, Spring Loaded Clamping Devices, Foot Pedal Release or other Custom Designing.

The least expensive and simplest device for producing heavy weight bundles is the riding stripper. These are mounted on the finishing block of the wire drawing machines and will carry any where from 1,000 to 3,000 lbs. of wire depending upon type size of wire and block diameter. When the stripper is full, it is removed from the Wire Drawing Machines and collapsed over the center of a wire carrier on to which the wire drops. The Stripper is then reinserted into the finishing block and the cycle repeated. Figure illustrates such a stripper without wire.

Our range of Wire Rope Hoists comprises of equipment in several working specifications and constructions. We offer hoists with mounted stationary, manual trolleys, powered trolleys, geared trolleys etc. The capacities of both the standard and customized hoists range in several tons.

Features:

• Long lift models
• High Speeds
• Various suspension combinations
• Spark resistant
• Low headroom
• Available in larger custom designs

Our excellent range of Killing Roller Sets comprises of equipment in various working specifications and constructions. This product is manufactured of high quality material as per the industry norms and it requires least maintenance. We assure its long lasting and hassle free performance. Moreover, this wonderful assortment is available at market leading prices.
